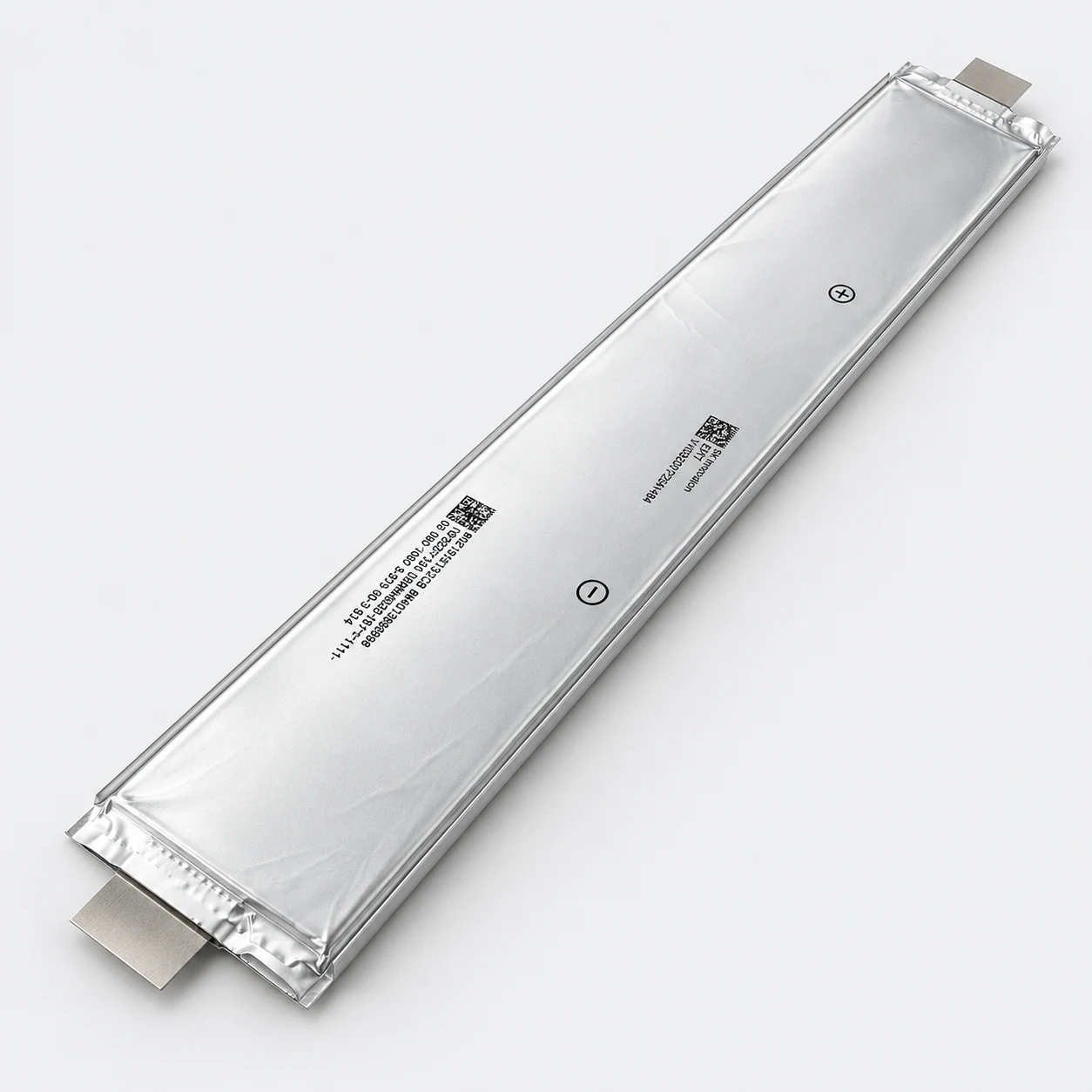

Product illustration for identification; request actual lot photographs and the matching drawing.
SK ON · Pouch Cells
SK On 77.7Ah
77.7Ah catalog class NMC pouch-cell sourcing reference
The source headline says 77.7Ah, but its table says 78Ah. Its weight entry is inconsistent and is not used here. Confirm capacity, weight and impedance in a matching manufacturer document.
Discuss this model on WhatsApp ↗For OEMs, battery pack manufacturers and industrial buyers.
MODEL OVERVIEW
SK On 77.7Ah — Selection & Sourcing
SK On 77.7Ah, reference code SK-77.7, is listed in our SK On pouch-cell range. The supplied reference shows 3.7V nominal voltage and an outline of 9 × 99 × 530 mm (thickness × width × length). The values below come from supplied product annotations and require confirmation against the specification and drawing for the offered lot.
For a pouch-cell project, share the module envelope, current profile and charging schedule. The review should include tab connections, insulation, cell support and the conditions used to measure thickness. These details help turn a catalog comparison into a practical qualification plan for the finished battery pack.
BK Energy can discuss SK On 77.7Ah wholesale sourcing with your purchasing team. Include the sample quantity, expected production volume, delivery destination and documents needed for supplier approval so the quotation addresses both technical and commercial requirements.
TECHNICAL REFERENCE
Specifications & Operating Conditions
Read each value with its test conditions. Confirm the applicable document revision before design approval.
| Brand / reference code | SK On / SK-77.7 |
|---|---|
| Chemistry / format | NMC lithium-ion / pouch |
| Capacity reference | 77.7Ah catalog class |
| Nominal voltage reference | 3.7V |
| Outline — T × W × L | 9 × 99 × 530 mm; tolerances and measurement conditions to confirm |
| Weight reference | Pending confirmation — source weight is inconsistent |
| Listed charge / discharge cutoffs | 4.2V / 2.5V |
| Supplier-listed C rates | Charge 0.5C; discharge 1C; pulse 3C; not validated continuous or pulse ratings |
| Supplier-listed discharge ambient | −30 to 60°C; obtain current derating and cell-surface limits |
| Supplier-listed cycle reference | ≥3,000 cycles; test conditions and retention criterion not provided |
| Data requiring confirmation | The source headline says 77.7Ah, but its table says 78Ah. Its weight entry is inconsistent and is not used here. Confirm capacity, weight and impedance in a matching manufacturer document. |
Specification basis
Supplied SK product image annotations, without a manufacturer document number or revision. C rates, cycle counts and temperature ranges are unverified supplier references, not pack-design limits. Obtain the matching manufacturer specification before qualification.
APPLICATION REVIEW
What to Check for Your Pack
For these project types, review the tab drawing, support and compression requirements, thermal contact and the current profile before selecting the cell.
- Energy and load: usable energy, continuous current, peak duration and charging opportunities.
- Mechanical and thermal fit: the exact drawing, connections, enclosure temperature and cooling arrangement.
- Qualification: a test plan based on the finished equipment, including its protection settings and required approvals.
Request the SK On specification, tab drawing, lot traceability, SDS and UN 38.3 test summary matching the offered cell. LG certificates shown elsewhere on this website do not cover SK On products.
Datasheet, Traceability & Certificates
Ask for the specification and drawing that match the offered lot. If your project needs a UN 38.3 test summary, SDS or a particular cell certificate, include that requirement in the enquiry.
BUYER QUESTIONS
Before You Order
Is this cell suitable for my application?
For these project types, review the tab drawing, support and compression requirements, thermal contact and the current profile before selecting the cell. Application names on this page are evaluation starting points, not a claim that an OEM has approved this exact cell.
Can I get the SK On 77.7Ah datasheet?
Yes—send the complete model code and your project requirements. We will review the matching specification and available documentation with you. Any preliminary values should be confirmed before production approval.
What are the wholesale price, MOQ and lead time?
These are quoted for the requested model, quantity, available lot and destination. Send sample demand and expected production volume so the offer can address your schedule.
Which documents should accompany the order?
Ask for the applicable specification revision, lot identification, SDS and UN 38.3 test summary, plus any model-specific certificates required for your market. Cell documents do not replace finished-pack or equipment approval.
Compare Other Pouch Cells
Compare exact specifications; a similar format does not mean the cells are interchangeable.
