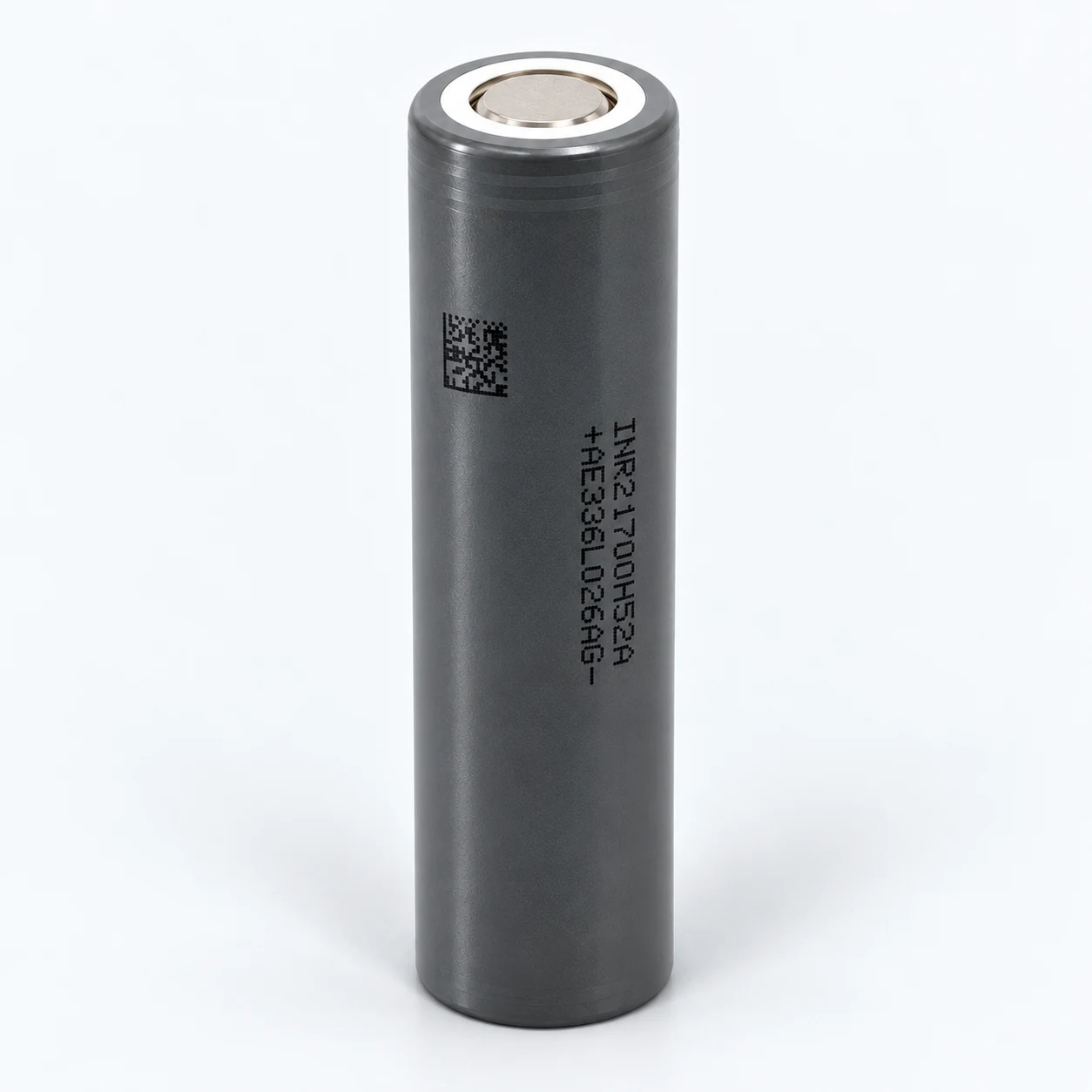

Product appearance shown for model identification.
LG ENERGY SOLUTION · 21700 Series
LG 21700-H52A
A 5.15Ah nominal power cell with preliminary data
The available revision is non-final and lists 40A continuous discharge at 25°C. Confirm the released specification before design approval.
Discuss this model on WhatsApp ↗For OEMs, battery pack manufacturers and industrial buyers.
MODEL OVERVIEW
LG 21700-H52A — Selection & Sourcing
LG H52A is a 21700 cell with 5150mAh nominal capacity, 5000mAh minimum capacity and 3.60V nominal voltage in the reviewed document. That document lists 40A maximum continuous discharge at 25°C and is marked as a non-final version. For cordless garden equipment and high-load robotic systems, those conditions are more useful than a broad high-C-rate label. An LG H52A sourcing discussion should cover both the expected load and the released specification revision, especially where a design depends on fast charging or sustained high output.
For a 21700 battery pack, share the series and parallel arrangement, continuous load and charging schedule. Check cell temperatures under the repeated duty cycle as well as brief peaks. This gives your engineering team a useful basis for comparing models and setting the sample qualification plan.
BK Energy can discuss LG 21700-H52A wholesale sourcing with your purchasing team. Include the sample quantity, expected production volume, delivery destination and documents needed for supplier approval so the quotation addresses both technical and commercial requirements.
TECHNICAL REFERENCE
Specifications & Operating Conditions
Read each value with its test conditions. Confirm the applicable document revision before design approval.
| Model / catalog code | LG 21700-H52A |
|---|---|
| Cell format | 21700 Series |
| Nominal capacity | 5150mAh |
| Minimum capacity | 5000mAh |
| Nominal energy | 18.54Wh |
| Minimum energy | 18.0Wh |
| Nominal voltage | 3.60V |
| Charge voltage | 4.2V |
| Discharge cut-off | 2.5V |
| Maximum charge | 5A at 0–10°C;15A at 10–60°C ambient |
| Maximum continuous discharge | 40A at 25°C |
| Weight | ≤66g |
| Dimensions | Diameter≤21.40mm;height≤70.42mm |
| Cycle life | ≥64% at 600cycles;15A charge,10/20/30A discharge;80°C cutoff;25°C;4.2–2.5V |
Specification basis
Technical values summarized from LG INR21700H52A — Product Specification, V1 (non-final). Confirm the applicable revision with the offered lot. Reference pages: 5, 6, 8, 9.
APPLICATION REVIEW
What to Check for Your Pack
For these project types, compare usable energy at the working load, cell-holder tolerances, busbar design and the temperature-dependent operating limits.
- Energy and load: usable energy, continuous current, peak duration and charging opportunities.
- Mechanical and thermal fit: the exact drawing, connections, enclosure temperature and cooling arrangement.
- Qualification: a test plan based on the finished equipment, including its protection settings and required approvals.
PROCUREMENT DOCUMENTS
Datasheet, Traceability & Certificates
Ask for the specification and drawing that match the offered lot. If your project needs a UN 38.3 test summary, SDS or a particular cell certificate, include that requirement in the enquiry.
BUYER QUESTIONS
Before You Order
Is this cell suitable for my application?
For these project types, compare usable energy at the working load, cell-holder tolerances, busbar design and the temperature-dependent operating limits. Application names on this page are evaluation starting points, not a claim that an OEM has approved this exact cell.
Can I get the LG 21700-H52A datasheet?
Yes—send the complete model code and your project requirements. We will review the matching specification and available documentation with you. Any preliminary values should be confirmed before production approval.
What are the wholesale price, MOQ and lead time?
These are quoted for the requested model, quantity, available lot and destination. Send sample demand and expected production volume so the offer can address your schedule.
Which documents should accompany the order?
Ask for the applicable specification revision, lot identification, SDS and UN 38.3 test summary, plus any model-specific certificates required for your market. Cell documents do not replace finished-pack or equipment approval.

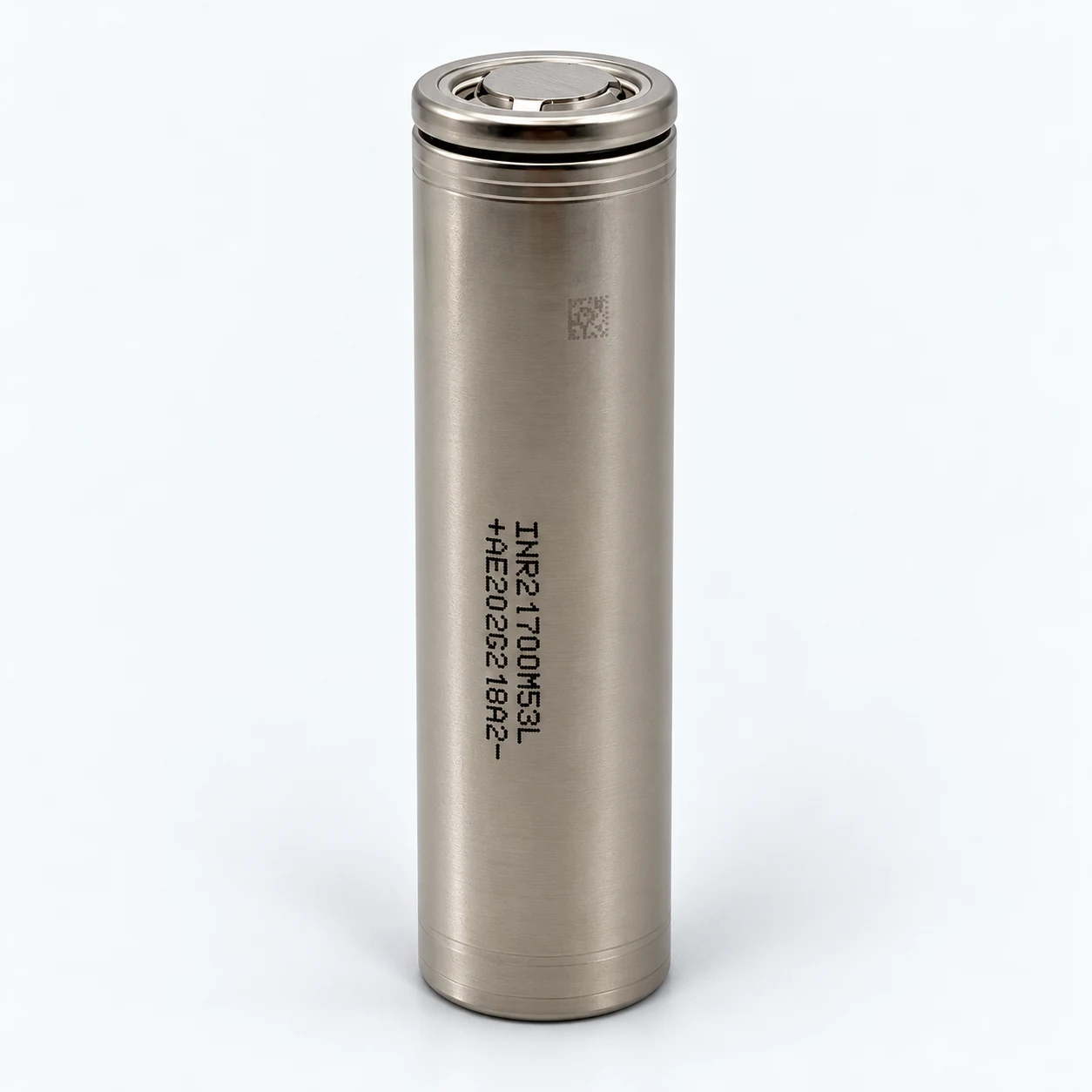

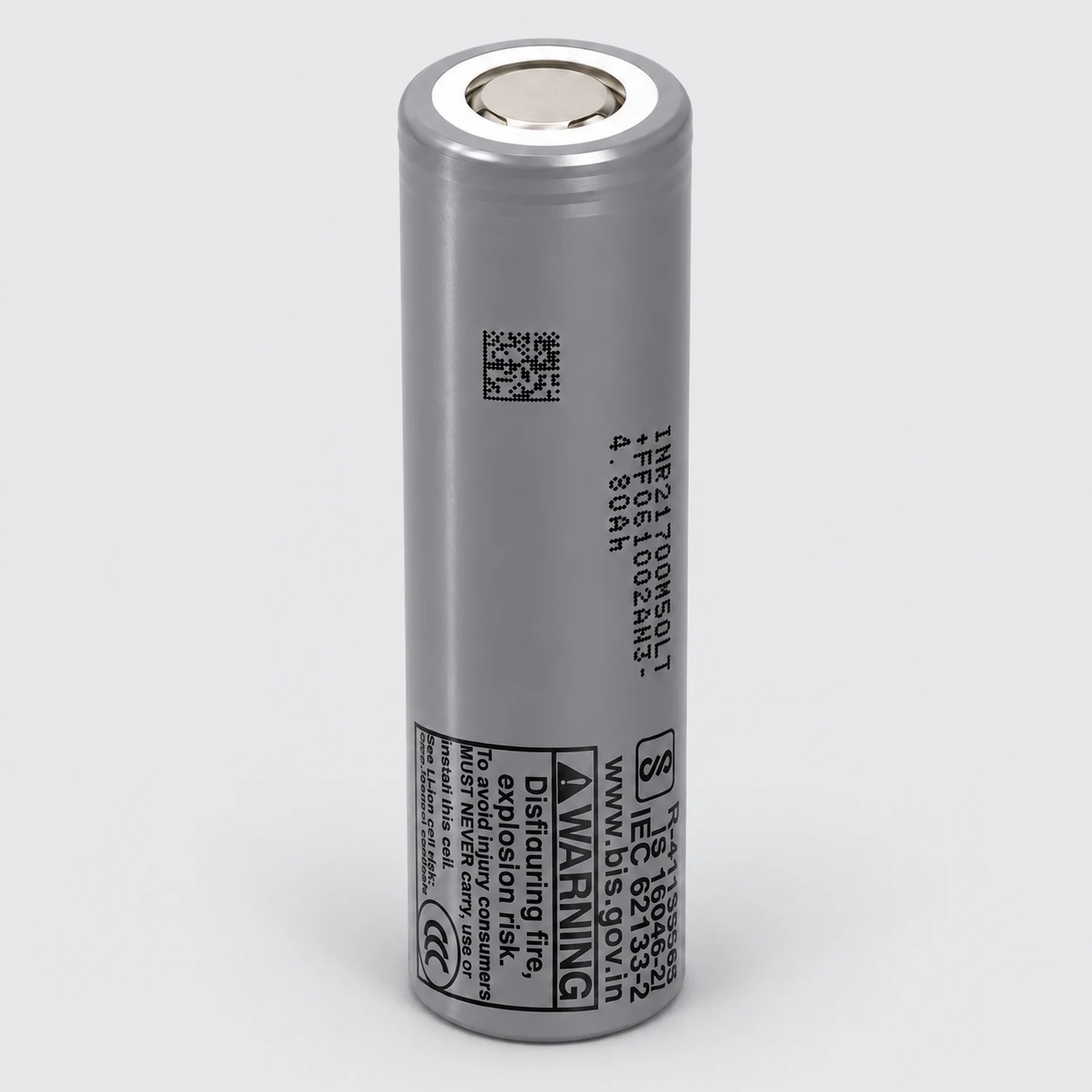

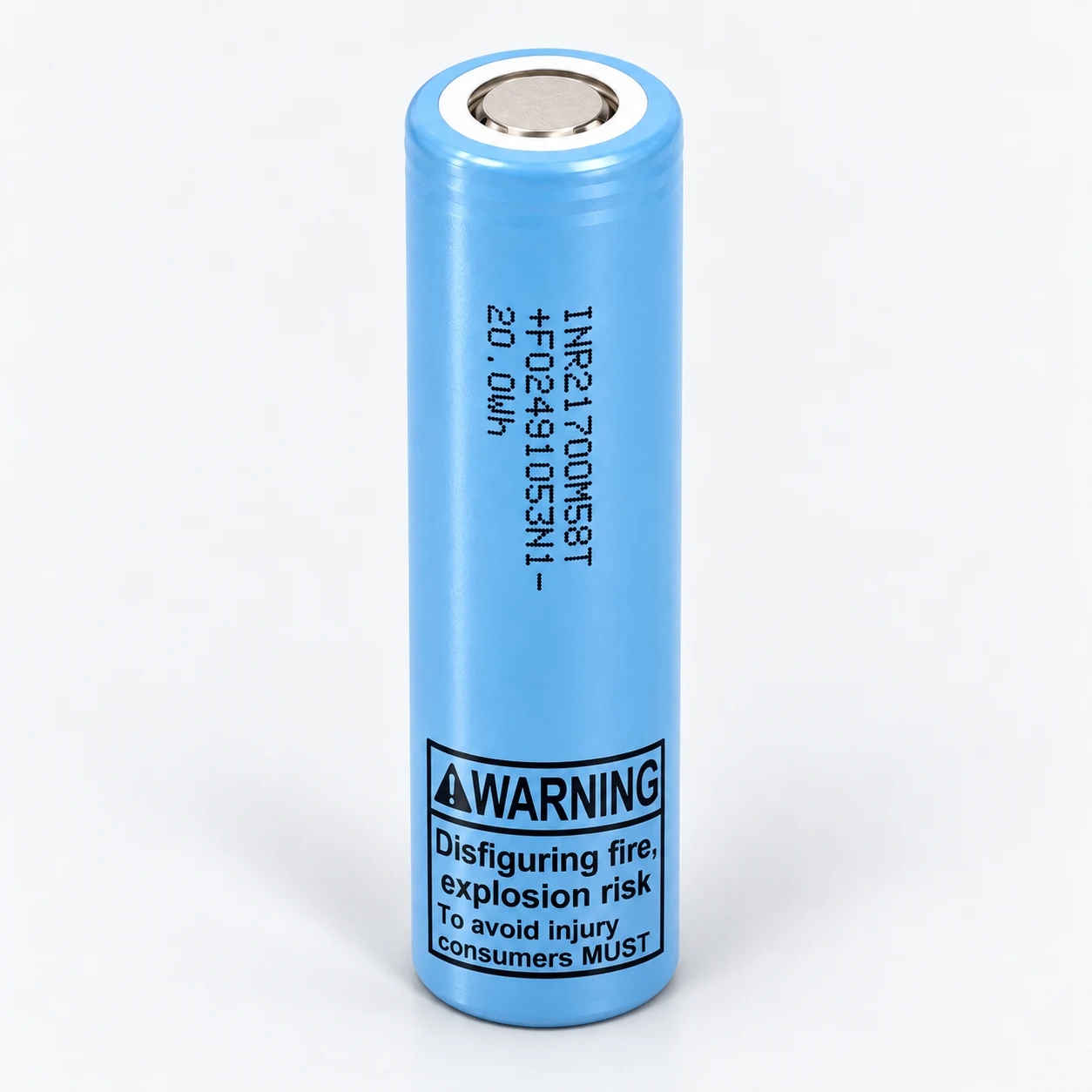

Compare Other 21700 Series
Compare exact specifications; a similar format does not mean the cells are interchangeable.
